Name: J7906 PROFLAME1 DFC CONTROL MODULE – Electronic
Brand: Hearth.Parts
SKU: J7906
Price: 205.0 USD
Availability: InStock

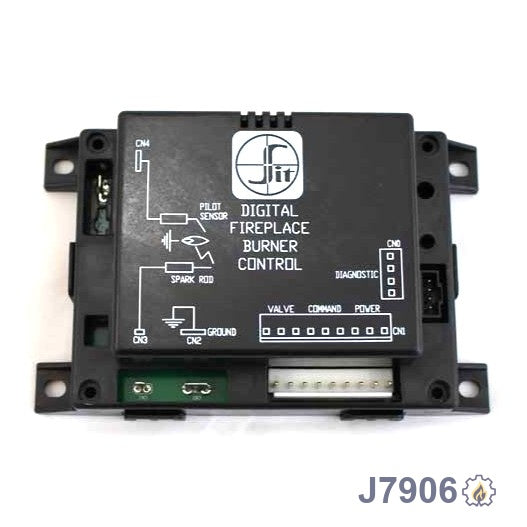

J7906 ProFlame1 DFC Control Module N/A fireplace replacement part

J7906 PROFLAME1 DFC CONTROL MODULE – Electronic

$205.00

J7906 PROFLAME1 DFC CONTROL MODULE – Electronic

$205.00

Special order

⚠ Special order — Ships in 1–2 weeks

Shipping policy • Return policy

What This Part Does

This electronic ignition control module operates and monitors the fireplace ignition sequence in an IPI (Intermittent Pilot Ignition) system.

When the fireplace receives a call for heat from a wall switch, thermostat, or remote control, the module begins the ignition cycle by powering the spark igniter and coordinating gas flow through the valve.

The module monitors flame rectification signals from the pilot assembly to verify ignition. Once pilot flame is proven, the module signals the gas valve to open the main burner.

This control module also manages safety shutdown functions. If ignition fails, flame is lost, or a fault condition is detected, the module will stop gas flow and place the system into safety lockout.

Electronic control modules are used in modern IPI fireplace systems and typically operate with battery backup or household power.

Not sure if this is the right part?

Before ordering, check the following:

Locate your model number (typically behind the lower louver or inside the control compartment)
Confirm your unit uses a Electronic system
Compare your existing control module to the images provided

⚠️ This part is NOT for a different ignition/control system systems

Compatible Models

Astria Gas Fireplaces:
ALLUME60TEN
Altair40DEN
Aries33REN
Aries33REP
Aries33TEN
Aries33TEP
Aries35REN
Aries35REP
Aries35TEN
Aries35TEP
Aries40REN
Aries40REP
Aries40TEN
Aries40TEP
Aries45DEN
Aries45DEP
AriesCD33REN
AriesCD33REP
AriesCD33TEN
AriesCD33TEP
AriesCD35REN
AriesCD35REP
AriesCD35TEN
AriesCD35TEP
AriesCD40REP
AriesCD40TEN
AriesCD40TEP
AriesCD45DEP
AriesVD40REN
Gemini33REN
Gemini33REP
Gemini33TEN
Gemini33TEP
Gemini35DEN
Gemini35DEP
Gemini40DEN
Gemini40DEP
Gemini45DEN
Gemini45DEP
Sirius42TEN
Sirius42TEP
Sirius54TEN
Sirius54TEP

Lennox Gas Fireplaces:
MPD35CNE
MPD35RNE
MPD40CNE
MPD40RNE
MPD45RNE
MPDP35IN
MPDP35IP
MPDP40IN
MPDP40IP
MPDR33RNE
MPDT33RNE
SYM35P
SYM40P
SYM45P

Superior Gas Fireplaces:
DRT2035REN
DRT63STTYN
SLBV35NE2
SLBV40NE2
SYM35N
SYM40N
SYM45N

System Type

This is an electronic ignition system, commonly called an IPI system or intermittent pilot ignition system. Instead of keeping a pilot flame burning continuously, the fireplace lights the pilot only when there is a call for heat.

IPI systems use a control module to manage ignition, flame sensing, gas valve operation, and safety shutdown functions.

This system commonly includes:

Control module — controls spark, flame sensing, and gas valve operation.
Electronic gas valve — opens and closes gas flow to the pilot and main burner.
Igniter / flame sensor assembly — creates spark and confirms flame presence.
Battery backup or power supply — provides operating power for ignition and control functions.

These systems offer improved efficiency, remote-control compatibility, and added safety features, but they also include more electronic components than a millivolt system.

Need help troubleshooting this system?

Use our interactive troubleshooting wizard for this control system.

SIT ProFlame I Troubleshooting Wizard

Control System: SIT ProFlame I

Interactive diagnostic guide for this fireplace system.

{"start":"pfi_start","steps":{"pfi_start":{"title":"SIT Proflame I Troubleshooting","question":"What problem are you having with this SIT Proflame I system?","help":"SIT Proflame I systems may include a DFC board, gas valve, SIT pilot assembly, receiver box, GTMF transmitter, Fan Control Module, and stepper motor flame modulation. Choose the symptom that best matches the fireplace behavior.","professionalHelp":"This guide involves gas, ignition, electrical, flame rectification, receiver pairing, and live-voltage diagnosis. If you are not qualified to service gas appliances, stop and request professional help.","showContactForm":true,"stop":false,"options":[{"text":"Fireplace will not light — no spark or ignition noise","next":"pfi_no_spark_no_noise","pathText":"No spark or ignition noise","showContactForm":true},{"text":"Pilot sparks but will not light","next":"pfi_spark_no_pilot","pathText":"Pilot sparks but will not light","showContactForm":true},{"text":"Pilot lights but continues sparking","next":"pfi_continues_sparking","pathText":"Pilot lights but continues sparking","showContactForm":true},{"text":"Pilot lights but burner will not turn on","next":"pfi_burner_no_light","pathText":"Pilot lights but burner will not turn on","showContactForm":true},{"text":"Remote or receiver not learning / not responding","next":"pfi_remote_receiver","pathText":"Remote or receiver issue","showContactForm":true},{"text":"Fan or lights not working","next":"pfi_fan_lights","pathText":"Fan or lights issue","showContactForm":true},{"text":"Flame modulation not working","next":"pfi_modulation","pathText":"Flame modulation issue","showContactForm":true}]},"pfi_no_spark_no_noise":{"title":"No Spark or Ignition Noise","question":"The fireplace will not light and there is no spark or ignition noise.","help":"Verify proper power supply throughout the system. Confirm the Fan Control Module has 120VAC power and that the FCM power switch is in the ON position. Verify power output from the FCM and DFC harness.Check that all wires are properly connected to the DFC board and that the system is properly grounded. Inspect wiring harnesses for loose connections or damage.If power, wiring, and ground are correct but there is still no spark, the DFC board may need replacement.","professionalHelp":"Power and DFC testing should be performed by a qualified service technician.","showContactForm":true,"stop":true,"options":[]},"pfi_spark_no_pilot":{"title":"Pilot Sparks But Will Not Light","question":"The pilot sparks, but the pilot flame will not light.","help":"Verify gas supply is ON and that the gas line has been bled to the valve. Inspect the pilot tube, pilot orifice, and pilot assembly for blockage, corrosion, or damage.Clean corrosion from the pilot assembly to ensure proper grounding. Check valve coil continuity. If there is no continuity, replace the gas valve.Verify voltage at the EV1 pilot valve connection. EV1 should receive approximately 5VDC initially and then drop to about 1VDC. If voltage is present but gas is not released, replace the valve. If no voltage is present, replace the DFC board.","professionalHelp":"Gas supply, EV1 voltage, and valve testing should be performed by a qualified service technician.","showContactForm":true,"stop":true,"options":[]},"pfi_continues_sparking":{"title":"Pilot Lights But Continues Sparking","question":"The pilot lights, but the ignitor continues sparking and the main burner does not turn on.","help":"If the pilot lights but spark continues, the system is not proving flame rectification. Verify the flame sensor is in the pilot flame and adjust pilot flame if needed.Verify the flame sensor wire is properly connected to the DFC module and that the system is properly grounded. Clean the flame sensor rod and remove corrosion from the pilot assembly.Inspect the flame sensor porcelain. If cracked, replace the flame sensor or pilot assembly. If sparking continues after flame sensor, wiring, and ground are confirmed, replace the DFC board.","professionalHelp":"Flame rectification and grounding diagnosis should be performed by a qualified service technician.","showContactForm":true,"stop":true,"options":[]},"pfi_burner_no_light":{"title":"Pilot Lights But Burner Will Not Turn On","question":"The pilot lights and holds, but the main burner does not ignite.","help":"Verify the receiver switch is in ON or REMOTE with the remote powered ON and thermostat OFF if manual operation is desired. Confirm wiring is connected according to the wiring diagram and replace damaged harnesses.Verify the pilot flame is properly directed to ignite the burner and that the ignitor is no longer sparking. Check that correct components are installed for the gas type.Check continuity of the main burner coil and verify voltage at EV2, the green main burner connection. If voltage is present and the valve does not open, replace the gas valve. If no voltage is present, replace the DFC board.","professionalHelp":"Main valve and EV2 testing should be performed by a qualified service technician.","showContactForm":true,"stop":true,"options":[]},"pfi_remote_receiver":{"title":"Remote or Receiver Not Learning / Not Responding","question":"The remote control or receiver box is not learning or not responding correctly.","help":"Verify proper 120VAC power supply. Remove batteries from the receiver backup battery bay and test whether the system can spark or light from the receiver switch. If it works only after batteries are reinstalled, focus on FCM power supply.Reset the DFC lockout by moving the receiver switch to OFF for approximately 30 seconds, then back to REMOTE. Press the PRG button on the receiver. Three fast beeps should indicate the receiver is ready to learn the transmitter code.Quickly press the ON/OFF button on the transmitter. Four beeps should indicate the receiver has learned the remote. If the receiver does not beep, check receiver harness connections and consider replacing the receiver. If the receiver beeps but does not learn, replace transmitter batteries or replace the remote.","professionalHelp":"Remote learning and receiver diagnosis may require professional service.","showContactForm":true,"stop":true,"options":[]},"pfi_fan_lights":{"title":"Fan or Lights Not Working","question":"The fan, lights, or accessory output does not work correctly.","help":"Not all fireplaces are equipped with fans or lights. Remove batteries from backup and verify the fireplace turns on using line power. Confirm the FCM is connected to AC power and the FCM switch is ON.For fan issues, verify power at the FCM fan outlet, confirm the remote fan setting is not OFF, and remember that fan operation may be delayed in thermostat mode. Unplug the fan from the FCM and plug it into a known 120V supply. If the fan works, replace the FCM. If the fan does not work, replace the fan.For light issues, inspect bulbs, fixtures, dimmer switch, wiring, and ground. If lights work from 120V but not from AUX OUT, replace the FCM. If lights do not work from 120V, replace the light kit.","professionalHelp":"FCM, fan, light, and 120VAC testing should be performed by a qualified service technician.","showContactForm":true,"stop":true,"options":[]},"pfi_modulation":{"title":"Flame Modulation Not Working","question":"The burner operates, but flame height does not modulate correctly.","help":"Verify the transmitter is not in SMART thermostat mode when manually testing flame height. Check inlet and outlet gas pressure according to the appliance manual.Inspect electrical connections and wiring for damage. Verify the main burner orifice is correct and not blocked. Confirm the receiver beeps when receiving transmitter commands. If there is no beep, troubleshoot remote learning first.Check continuity of the step motor. Resistance between the yellow/orange and black/brown wire pairs should be approximately 25 ohms. If there is no continuity or the step motor is not regulating outlet pressure, replace the step motor.","professionalHelp":"Gas pressure and step motor diagnosis should be performed by a qualified technician.","showContactForm":true,"stop":true,"options":[]}}}

Common Problems This Control Module May Fix

Fireplace will not light or start
No spark at the pilot assembly
Pilot lights but main burner will not ignite
Intermittent operation or random shutdowns
Module clicks continuously without ignition
No response from wall switch, thermostat, or remote
System locks out after failed ignition attempts
Burner shuts off unexpectedly during operation

The control module is the main electronic controller for the fireplace ignition system. A failed module can prevent proper communication between the pilot assembly, gas valve, flame sensor, and wall controls.

Before replacing the module, also inspect the pilot assembly, wiring harness, grounding, batteries, and gas valve, as these components can cause similar symptoms.

Warranty Information

This product includes a 12-month warranty from the date of purchase. This warranty covers defects in materials or workmanship under normal operating conditions.

Fireplace components must be properly installed and matched to the correct system (millivolt vs IPI, natural gas vs propane).

This warranty does NOT cover:
• Improper installation or incorrect application
• Use with the wrong gas type (NG vs LP)
• Misdiagnosis of the issue
• Damage caused by other failing components
• Normal wear and tear
• Labor, service, or diagnostic time

Because many fireplace issues can be caused by multiple components, we strongly recommend confirming the diagnosis before replacing parts.

We are happy to assist with this. Proof of purchase is required for all warranty claims. Please contact us prior to removal or replacement of the part so we can help verify the issue and guide the warranty process.

Is this a safe DIY repair?

Control module replacement is generally safer than repairs involving gas lines, but it still requires working with electrical and ignition components inside the fireplace.

Improper wiring, incorrect setup, or failure to follow manufacturer instructions can prevent proper ignition or cause unsafe operation. Care should also be taken to avoid damaging sensitive electronic components during installation.

If you are comfortable working with low-voltage wiring and fireplace components, this may be a manageable repair. When in doubt, installation should be performed by a qualified technician.

How difficult is this part to replace?

Replacing a fireplace control module is generally considered a moderate repair that involves working with low-voltage wiring and electronic ignition components.

The process typically requires access to the control compartment, disconnecting wiring harnesses, and properly reconnecting the replacement module according to the manufacturer’s specifications.

Care should be taken to avoid wiring errors or damage to sensitive electronic components during installation.

How do I know if this part is bad?

Common signs of a failing control module include no spark during ignition, intermittent operation, repeated system lockouts, or the fireplace failing to respond to a wall switch, remote, or thermostat.

In some cases, the module may fail to send power to the igniter or gas valve, preventing the pilot or burner from lighting properly.

Before replacing the control module, it is important to verify that the igniter, flame sensor, wiring, power supply, and gas valve are functioning correctly, as these components can produce similar symptoms.

Do I need any special tools to install this?

Most control module replacements can be performed using basic hand tools such as screwdrivers and nut drivers. Some installations may also require access to wiring connectors or mounting brackets inside the fireplace.

It is important to verify all wiring connections are installed correctly and securely, as improper wiring can prevent ignition or damage system components.

Always disconnect power to the fireplace before servicing electronic components.
