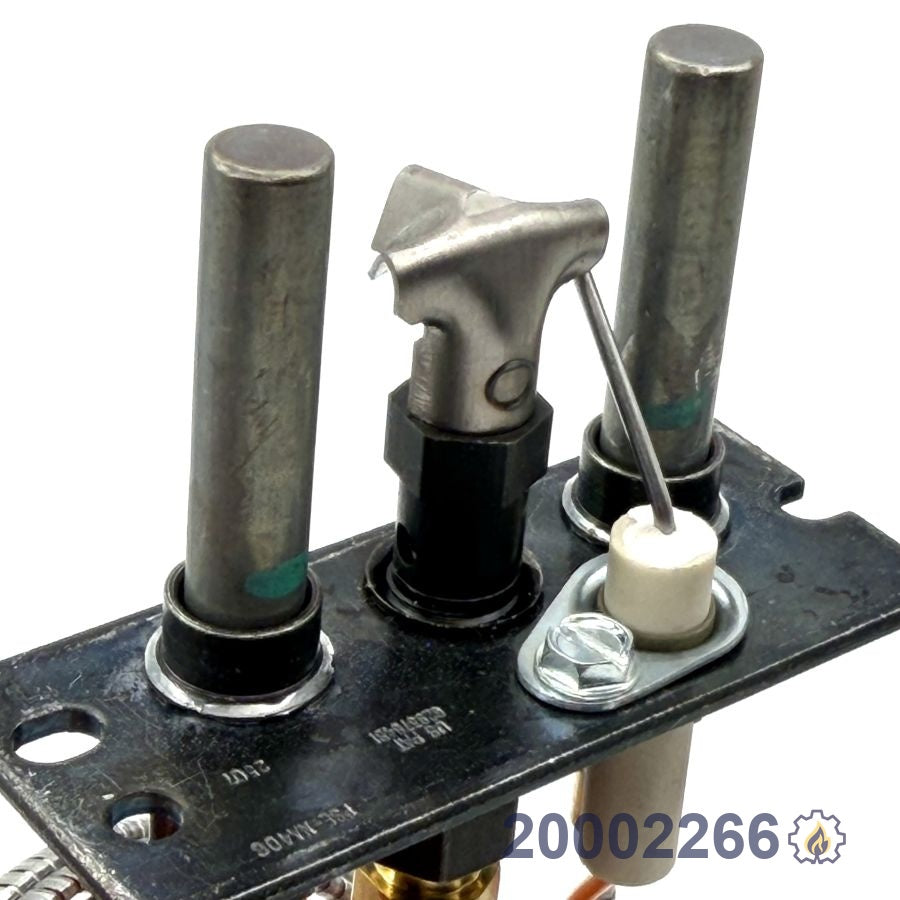

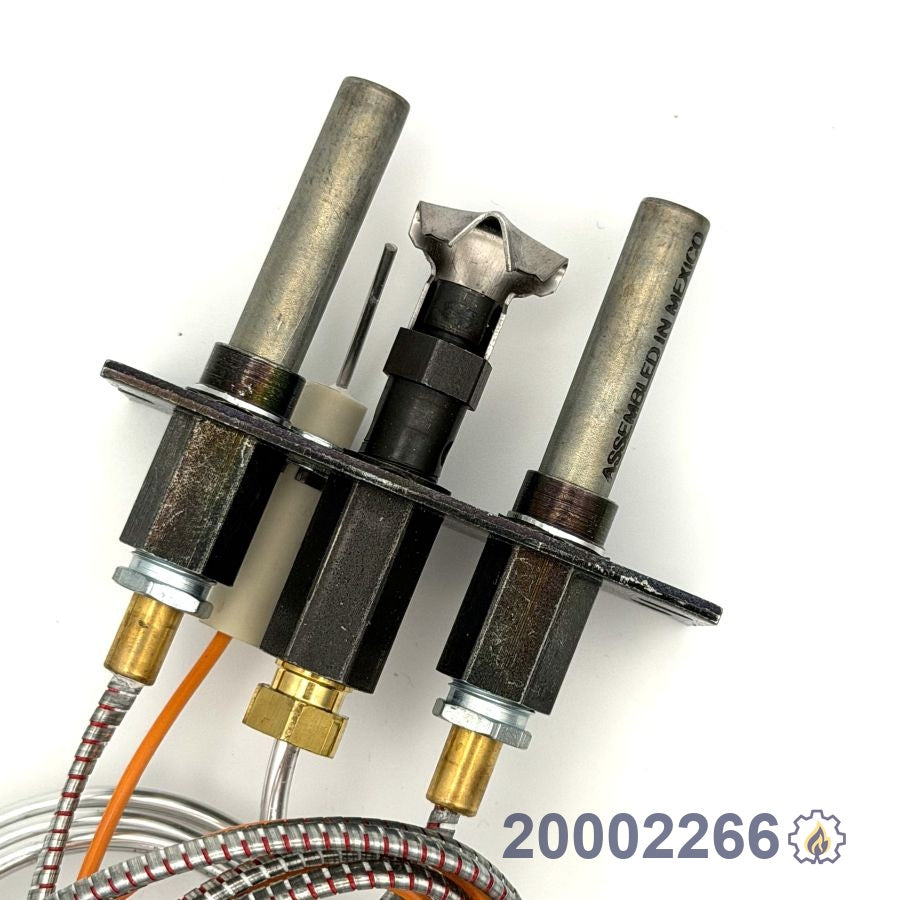

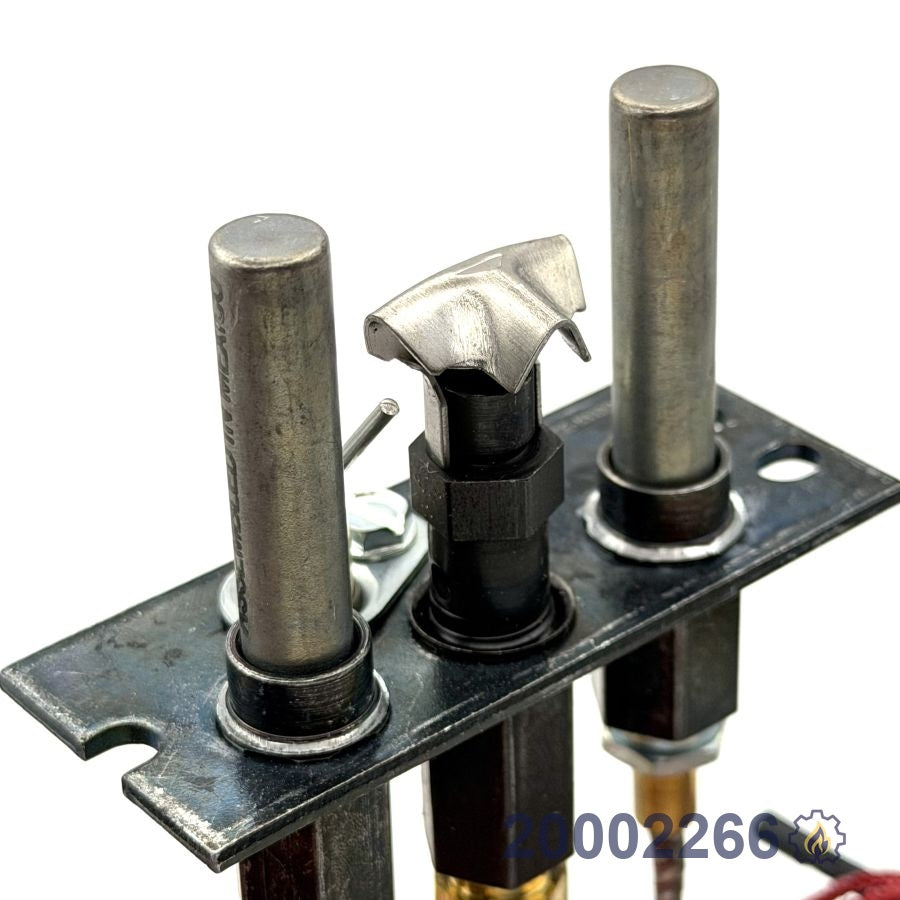

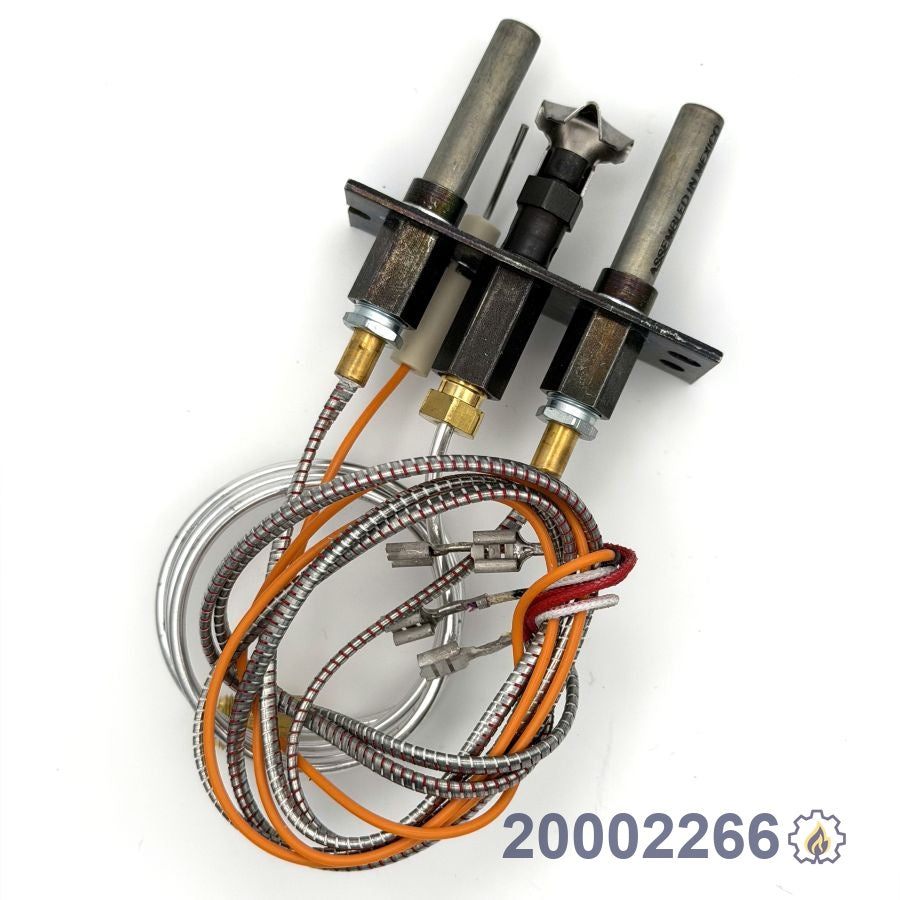

20002266 PILOT ASSEMBLY RFN – Natural Gas – Millivolt

Compatible Models

Majestic Gas Fireplaces:
DVRT36
DVRT41
LHEC20
LHEC30

Majestic Gas Inserts:
LHECDV20
LHECDV30
RHE32
RHE42

Majestic Gas Stoves:
DV360
DV580
DVB4136
RFSDV34RF
RHEDV32
RHEDV42

Vermont Castings Gas Stoves:
0003225
0003226
0003227
0003228
0003229
0003230
0003231
0003232
0003350
0003351
0003352
0003354
0003360
0003361
0003362
0003363
0003364
0003365
0003366
0003367
0003368
0003369
0003390
0003391
0003392
0003393
0003394
0003395
0003396
0003397
0003398
0003399
36XDV
RADVT
RADVTC
RDVOD
SDDVR
SDDVRC
SDDVT
SDDVTC
SDDVTCSBD
SDV30

System Type

This is a millivolt standing pilot system. These systems use a continuously burning pilot flame and do not require household electrical power for basic operation.

Millivolt systems are commonly found in many direct vent gas fireplaces and are known for simple, reliable operation.

This system commonly includes:

• Thermocouple — helps keep the pilot gas valve open when the pilot flame is proven.
• Thermopile — generates millivolt power used to operate the main gas valve.
• Igniter electrode — provides manual spark ignition, usually from a push-button piezo igniter.
• Pilot tube — delivers gas from the valve to the pilot assembly.

Because these systems do not rely on external power, they can often operate during a power outage when used with a manual switch or compatible battery-free control setup.

These systems offer improved efficiency, remote-control compatibility, and added safety features, but they also include more electronic components than a millivolt system.

Common Problems This Part Fixes

If your fireplace uses a millivolt (standing pilot) system, the pilot assembly is responsible for generating the voltage needed to operate the gas valve and proving flame safety. When it begins to fail, it can cause a range of ignition and operating issues.

Replacing the pilot assembly often resolves the following problems:

• Pilot will not stay lit
  A weak or failing thermocouple may not keep the gas valve open.
• Pilot lights but goes out when the knob is released
  The thermocouple is not properly generating or delivering a safety signal.
• Pilot flame is weak, small, or unstable
  A clogged pilot orifice or worn components can affect flame quality.
• Burner will not turn on even though pilot is lit
  A weak thermopile may not generate enough voltage to operate the valve.
• Intermittent operation or delayed burner ignition
  Inconsistent voltage output from the pilot assembly can cause unreliable performance.
• No response from wall switch or remote
  Insufficient millivolt output can prevent the system from activating.
• Difficulty lighting the pilot
  A worn igniter electrode or misaligned pilot components can prevent proper ignition.

Important Note

Many of these symptoms can also be caused by a faulty gas valve, loose wiring, or improper gas pressure. Proper diagnosis is recommended before replacing the pilot assembly.

Warranty Information

This product includes a 12-month warranty from the date of purchase. This warranty covers defects in materials or workmanship under normal operating conditions.

Fireplace components must be properly installed and matched to the correct system (millivolt vs IPI, natural gas vs propane).

This warranty does NOT cover:
• Improper installation or incorrect application
• Use with the wrong gas type (NG vs LP)
• Misdiagnosis of the issue
• Damage caused by other failing components
• Normal wear and tear
• Labor, service, or diagnostic time

Because many fireplace issues can be caused by multiple components, we strongly recommend confirming the diagnosis before replacing parts.

We are happy to assist with this. Proof of purchase is required for all warranty claims. Please contact us prior to removal or replacement of the part so we can help verify the issue and guide the warranty process.

Do I need any special tools to install this?

Most pilot assemblies can be installed using basic hand tools, and no specialized equipment is typically required.

In most cases, you will need:

• Adjustable wrench or open-end wrenches
• Screwdrivers (Phillips and/or flathead)
• Nut driver or socket set

The pilot assembly is usually mounted near the burner and connected by a pilot tube and thermocouple or thermopile. Installation involves removing the old assembly, reconnecting the gas line components, and securing the new pilot in place.

It is important to ensure all connections are tight and properly aligned. After installation, always check for gas leaks using a leak detection solution and confirm proper pilot flame appearance.

If you are unsure or uncomfortable working with gas components, we recommend having a qualified technician perform the installation to ensure safe and proper operation.

Do I need to make any adjustments after installation?

In most cases, no major adjustments are required after installing a pilot assembly, but a few important checks should always be performed to ensure proper operation.

After installation, you should:

• Verify the pilot flame is steady and properly positioned over the thermocouple or flame sensor
• Confirm the flame is strong enough to fully engulf the sensor (not weak or lifting)
• Check all gas connections for leaks using a leak detection solution

Some systems may include a pilot adjustment screw on the gas valve. If needed, this can be used to fine-tune the pilot flame height, but many modern systems are preset and do not require adjustment.

If the pilot flame appears weak, unstable, or does not stay lit, this may indicate an issue with gas pressure, air in the line, or another component in the system.

Proper flame appearance and stable operation are key to safe and reliable performance. If you are unsure about flame characteristics or adjustments, we recommend consulting a qualified technician.

How difficult is this part to replace?

Replacing a pilot assembly is generally considered a moderate repair and can often be completed by a homeowner with basic mechanical skills.

The process typically involves accessing the burner area, disconnecting the pilot tube and sensor leads, removing the old assembly, and installing the new one in the same position.

While no specialized tools are usually required, the work does involve gas connections and components that must be installed correctly to ensure safe operation.

For someone comfortable working with hand tools and following instructions carefully, this is a manageable repair. However, access to the pilot assembly can vary depending on the fireplace model, and some units may require additional disassembly.

If you are unsure about working with gas systems or identifying proper flame characteristics after installation, we recommend having a qualified technician perform the replacement.

How do I know if my pilot assembly is bad?

A bad pilot assembly will usually show clear symptoms related to ignition problems or unstable flame performance.

Common signs of a faulty pilot assembly include:

• Pilot will not light at all
• Pilot lights but will not stay lit
• Weak, small, or flickering pilot flame
• Pilot lights but the main burner does not turn on
• Intermittent operation or frequent shutdowns

In many cases, the issue is caused by a worn or failing thermocouple or thermopile, a clogged pilot hood, or a damaged ignition component. Dirt, dust, or corrosion can also affect how the pilot flame contacts the sensor.

A proper pilot flame should be steady, strong, and fully engulf the thermocouple or flame sensor. If the flame is weak, not making good contact, or going out unexpectedly, the pilot assembly may need to be cleaned or replaced.

Before replacing the assembly, it is also important to rule out other possible causes such as low gas pressure, air in the gas line, or a faulty gas valve.

If cleaning does not resolve the issue or the components show signs of wear or damage, replacing the pilot assembly is often the most reliable solution.
